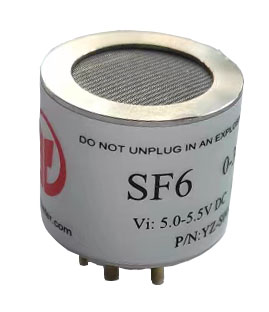

SF6 gas sensor,Sulfur hexafluoride gas sensor, infrared NDIR, SF6 infrared gas sensor, SF6 sensor, Sulfur hexafluoride sensor
Power Voltage | 3.3 - 5.5V DC |
Operating current | 60-80mA |
Analog output | 0.4～2.0V |
Measurement range | 0-3000ppm |
Resolution | 1ppm, |
Accuracy | ±5%FS |
Warm up time | 30s |
Response time T90 | <25s |
Operating temperature range | -20～60°C |
Storage temperature range | -20°C～+50°C (-4°F～122°F) |
Operating humidity range | 0-95% RH non condensing |
Digital communications parameters | 8 Data bit,1 Stop bit, No Parity bit |
Band rate | 9600bps |
MTBF | > 5 Years |
Weight | 16g |
IP Code | IP54 |
Interface level | 3.0V |
Dimensions | Φ20×21.4mm |
